一、CDLK8-160/16_浸入式不銹鋼多級離心泵簡介：
EJIAMP/上海意嘉泵業品牌CDLK8-160/16 浸入式不銹鋼多級離心泵電機軸通過泵頭用聯軸器直接與泵軸聯接，為安裝標準電機的液下立式多級離心液下泵。適用于輸送機床冷卻液、潤滑液、冷凝水輸送、工業清洗設備和其它適合浸入式泵使用的場合。不銹鋼多級泵可根據需要配置智能保護器，對泵干轉、缺相、過載等進行有效保護。為滿足水槽或容器的安裝深度，可安裝空腔體的深度來改變泵本身的長度，具體用于電火花、車床、磨床、加工中心、冷卻裝置、工業清洗設備、過濾系統等?？奢斔退袄鋮s用水溶液和切割潤滑液。

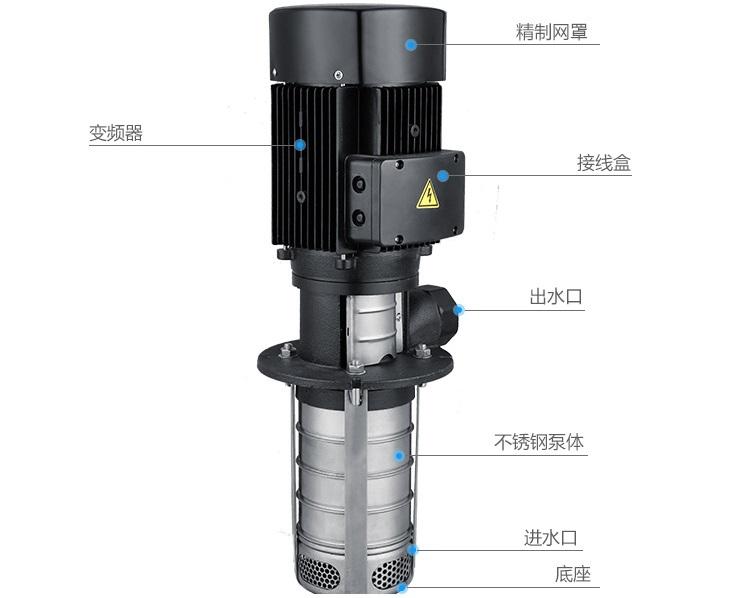

二、CDLK浸入式多級泵結構：
三、CDLK8-160/16_浸入式不銹鋼多級離心泵運行條件：
不含固體顆?；蚶w維的液體。
液體溫度：常溫型-15℃～+70℃、熱水型+70℃～+120℃
環境溫度：0-40℃
海拔：1000m
當泵在環境溫度大于40℃或海拔高于1000m下運行時，由于空氣密度低冷卻效果差，電機輸出功率會有一定降低。泵在上述情況下運行電機功率需配大。
如用戶不作要求，本廠提供管道離心泵的電源要求均為380V、50HZ。但根據用戶要求，可提供特殊規格、特殊頻率（50HZ、60HZ）、特殊電壓（110V-660V）的電源用泵。

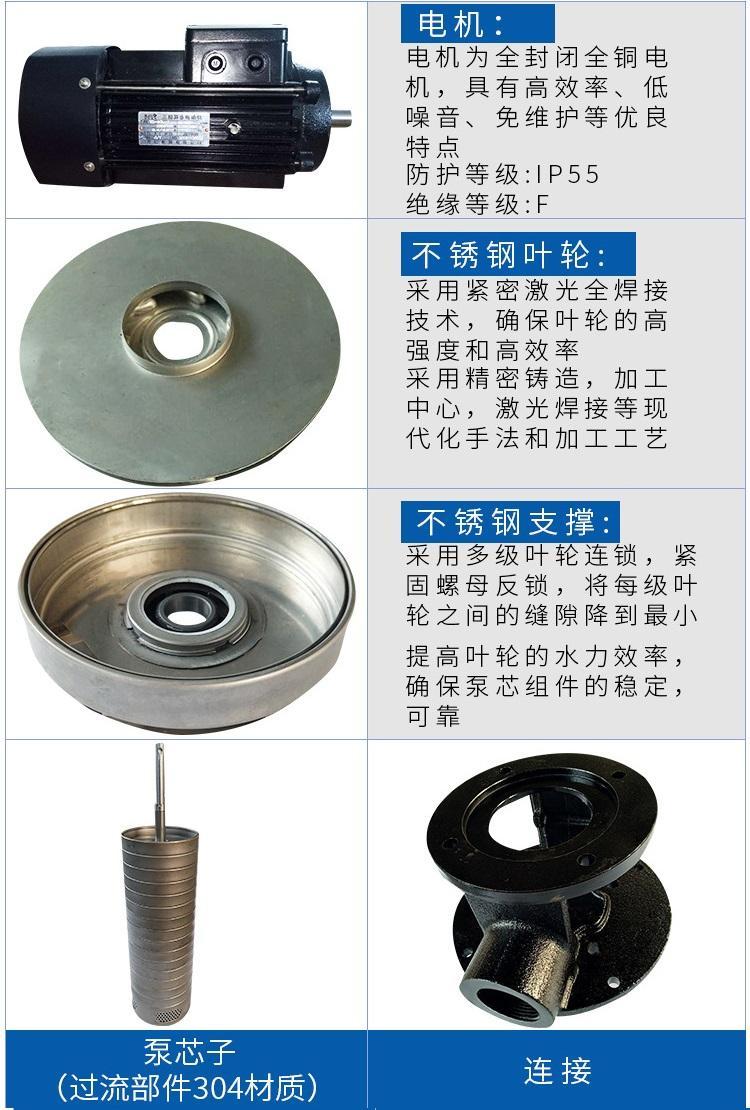

四、CDLK8-160/16_浸入式不銹鋼多級離心泵細節
參數表
| 型號 | 揚程 | 流量(m3/h) | 電機功率(KW) | 轉速(r/min) |
| CDLK1-20/2 | 11.5 | 1 | 0.37 | 2900 |
| CDLK1-30/3 | 17 | 1 | 0.37 | 2900 |
| CDLK1-40/4 | 22.5 | 1 | 0.37 | 2900 |
| CDLK1-50/5 | 28 | 1 | 0.37 | 2900 |
| CDLK1-60/6 | 33.5 | 1 | 0.37 | 2900 |
| CDLK1-70/7 | 39 | 1 | 0.37 | 2900 |
| CDLK1-80/8 | 45 | 1 | 0.55 | 2900 |
| CDLK1-90/9 | 51 | 1 | 0.55 | 2900 |
| CDLK1-100/10 | 57 | 1 | 0.55 | 2900 |
| CDLK1-110/11 | 61 | 1 | 0.55 | 2900 |
| CDLK1-120/12 | 67 | 1 | 0.75 | 2900 |
| CDLK1-130/13 | 73 | 1 | 0.75 | 2900 |
| CDLK1-150/15 | 84 | 1 | 0.75 | 2900 |
| CDLK1-170/17 | 95 | 1 | 1.1 | 2900 |
| CDLK1-190/19 | 106 | 1 | 1.1 | 2900 |
| CDLK1-210/21 | 117 | 1 | 1.1 | 2900 |
| CDLK1-230/23 | 128 | 1 | 1.1 | 2900 |
| CDLK1-250/25 | 139 | 1 | 1.5 | 2900 |
| CDLK1-270/27 | 150 | 1 | 1.5 | 2900 |
| CDLK1-300/30 | 166 | 1 | 1.5 | 2900 |
| CDLK1-330/33 | 183 | 1 | 2.2 | 2900 |
| CDLK1-360/36 | 200 | 1 | 2.2 | 2900 |
| CDLK2-20/2 | 15 | 2 | 0.37 | 2900 |
| CDLK2-30/3 | 22 | 2 | 0.37 | 2900 |
| CDLK2-40/4 | 30 | 2 | 0.55 | 2900 |
| CDLK2-50/5 | 37 | 2 | 0.55 | 2900 |
| CDLK2-60/6 | 45 | 2 | 0.75 | 2900 |
| CDLK2-70/7 | 52 | 2 | 0.75 | 2900 |
| CDLK2-90/9 | 67 | 2 | 1.1 | 2900 |
| CDLK2-110/11 | 82 | 2 | 1.1 | 2900 |
| CDLK2-130/13 | 98 | 2 | 1.5 | 2900 |
| CDLK2-150/15 | 112 | 2 | 1.5 | 2900 |
| CDLK2-180/18 | 136 | 2 | 2.2 | 2900 |
| CDLK2-220/22 | 165 | 2 | 2.2 | 2900 |
| CDLK2-260/26 | 198 | 2 | 3.0 | 2900 |
| CDLK3-20/2 | 9 | 3 | 0.37 | 2900 |
| CDLK3-30/3 | 14 | 3 | 0.37 | 2900 |
| CDLK3-40/4 | 19 | 3 | 0.37 | 2900 |
| CDLK3-50/5 | 23 | 3 | 0.37 | 2900 |
| CDLK3-60/6 | 28 | 3 | 0.55 | 2900 |
| CDLK3-70/7 | 32 | 3 | 0.55 | 2900 |
| CDLK3-80/8 | 37 | 3 | 0.75 | 2900 |
| CDLK3-90/9 | 42 | 3 | 0.75 | 2900 |
| CDLK3-100/10 | 47 | 3 | 0.75 | 2900 |
| CDLK3-110/11 | 51 | 3 | 1.1 | 2900 |
| CDLK3-120/12 | 55 | 3 | 1.1 | 2900 |
| CDLK3-130/13 | 60 | 3 | 1.1 | 2900 |
| CDLK3-150/15 | 69 | 3 | 1.1 | 2900 |
| CDLK3-170/17 | 79 | 3 | 1.5 | 2900 |
| CDLK3-190/19 | 88 | 3 | 1.5 | 2900 |
| CDLK3-210/21 | 98 | 3 | 2.2 | 2900 |
| CDLK3-230/23 | 107 | 3 | 2.2 | 2900 |
| CDLK3-250/25 | 116 | 3 | 2.2 | 2900 |
| CDLK3-270/27 | 124 | 3 | 2.2 | 2900 |
| CDLK3-290/29 | 133 | 3 | 2.2 | 2900 |
| CDLK3-310/31 | 142 | 3 | 3.0 | 2900 |
| CDLK3-330/33 | 151 | 3 | 3.0 | 2900 |
| CDLK3-360/36 | 168 | 3 | 3.0 | 2900 |
| CDLK4-20/2 | 15 | 4 | 0.37 | 2900 |
| CDLK4-30/3 | 24 | 4 | 0.55 | 2900 |
| CDLK4-40/4 | 32 | 4 | 0.75 | 2900 |
| CDLK4-50/5 | 40 | 4 | 1.1 | 2900 |
| CDLK4-60/6 | 48 | 4 | 1.1 | 2900 |
| CDLK4-70/7 | 56 | 4 | 1.5 | 2900 |
| CDLK4-80/8 | 64 | 4 | 1.5 | 2900 |
| CDLK4-100/10 | 81 | 4 | 2.2 | 2900 |
| CDLK4-120/12 | 95 | 4 | 2.2 | 2900 |
| CDLK4-140/14 | 112 | 4 | 3.0 | 2900 |
| CDLK4-160/16 | 129 | 4 | 3.0 | 2900 |
| CDLK4-190/19 | 153 | 4 | 4.0 | 2900 |
| CDLK4-220/22 | 178 | 4 | 4.0 | 2900 |
| CDLK8-20/2 | 18 | 8 | 0.75 | 2900 |
| CDLK8-30/3 | 27 | 8 | 1.1 | 2900 |
| CDLK8-40/4 | 36 | 8 | 1.5 | 2900 |
| CDLK8-50/5 | 45 | 8 | 2.2 | 2900 |
| CDLK8-60/6 | 54 | 8 | 2.2 | 2900 |
| CDLK8-80/8 | 73 | 8 | 3.0 | 2900 |
| CDLK8-100/10 | 92 | 8 | 4.0 | 2900 |
| CDLK8-120/12 | 111 | 8 | 4.0 | 2900 |
| CDLK8-140/14 | 130 | 8 | 5.5 | 2900 |
| CDLK8-160/16 | 148 | 8 | 5.5 | 2900 |
| CDLK8-180/18 | 167 | 8 | 7.5 | 2900 |
| CDLK8-200/20 | 186 | 8 | 7.5 | 2900 |
| CDLK16-20/2 | 22 | 16 | 2.2 | 2900 |
| CDLK16-30/3 | 34 | 16 | 3.0 | 2900 |
| CDLK16-40/4 | 46 | 16 | 4.0 | 2900 |
| CDLK16-50/5 | 58 | 16 | 5.5 | 2900 |
| CDLK16-60/6 | 70 | 16 | 5.5 | 2900 |
| CDLK16-70/7 | 82 | 16 | 7.5 | 2900 |
| CDLK16-80/8 | 94 | 16 | 7.5 | 2900 |
| CDLK16-100/10 | 118 | 16 | 11 | 2900 |
| CDLK16-120/12 | 141 | 16 | 11 | 2900 |
| CDLK16-140/14 | 166 | 16 | 15 | 2900 |
| CDLK16-160/16 | 189 | 16 | 15 | 2900 |
| CDLK20-20/2 | 23 | 20 | 2.2 | 2900 |
| CDLK20-30/3 | 35 | 20 | 4 | 2900 |
| CDLK20-40/4 | 47 | 20 | 5.5 | 2900 |
| CDLK20-50/5 | 58 | 20 | 5.5 | 2900 |
| CDLK20-60/6 | 70 | 20 | 7.5 | 2900 |
| CDLK20-70/7 | 82 | 20 | 7.5 | 2900 |
| CDLK20-80/8 | 94 | 20 | 11 | 2900 |
| CDLK20-100/10 | 118 | 20 | 11 | 2900 |
| CDLK20-120/12 | 142 | 20 | 15 | 2900 |
| CDLK20-140/14 | 166 | 20 | 15 | 2900 |
| CDLK20-170/17 | 202 | 20 | 18.5 | 2900 |
| CDLK32-10/1-1 | 9 | 32 | 1.5 | 2900 |
| CDLK32-10/1 | 13 | 32 | 2.2 | 2900 |
| CDLK32-20/2-2 | 20 | 32 | 3 | 2900 |
| CDLK32-20/2 | 27 | 32 | 4 | 2900 |
| CDLK32-30/3-2 | 33 | 32 | 5.5 | 2900 |
| CDLK32-30/3 | 40 | 32 | 5.5 | 2900 |
| CDLK32-40/4-2 | 46 | 32 | 7.5 | 2900 |
| CDLK32-40/4 | 53 | 32 | 7.5 | 2900 |
| CDLK32-50/5-2 | 60 | 32 | 11 | 2900 |
| CDLK32-50/5 | 67 | 32 | 11 | 2900 |
| CDLK32-60/6-2 | 74 | 32 | 11 | 2900 |
| CDLK32-60/6 | 81 | 32 | 11 | 2900 |
| CDLK32-70/7-2 | 88 | 32 | 15 | 2900 |
| CDLK32-70/7 | 95 | 32 | 15 | 2900 |
| CDLK32-80/8-2 | 102 | 32 | 15 | 2900 |
| CDLK32-80/8 | 109 | 32 | 15 | 2900 |
| CDLK32-90/9-2 | 117 | 32 | 18.5 | 2900 |
| CDLK32-90/9 | 124 | 32 | 18.5 | 2900 |
| CDLK32-100/10-2 | 131 | 32 | 18.5 | 2900 |
| CDLK32-100/10 | 138 | 32 | 18.5 | 2900 |
| CDLK32-110/11-2 | 146 | 32 | 22 | 2900 |
| CDLK32-110/11 | 153 | 32 | 22 | 2900 |
| CDLK32-120/12-2 | 160 | 32 | 22 | 2900 |
| CDLK32-120/12 | 167 | 32 | 22 | 2900 |
| CDLK32-130/13-2 | 174 | 32 | 30 | 2900 |
| CDLK32-130/13 | 181 | 32 | 30 | 2900 |
| CDLK32-140/14-2 | 189 | 32 | 30 | 2900 |
| CDLK32-140/14 | 196 | 32 | 30 | 2900 |
| CDLK42-10/1-1 | 16 | 42 | 3 | 2900 |
| CDLK42-10/1 | 20 | 42 | 4 | 2900 |
| CDLK42-20/2-2 | 32 | 42 | 5.5 | 2900 |
| CDLK42-20/2 | 41 | 42 | 7.5 | 2900 |
| CDLK42-30/3-2 | 52 | 42 | 11 | 2900 |
| CDLK42-30/3 | 61 | 42 | 11 | 2900 |
| CDLK42-40/4-2 | 73 | 42 | 15 | 2900 |
| CDLK42-40/4 | 81 | 42 | 15 | 2900 |
| CDLK42-50/5-2 | 93 | 42 | 18.5 | 2900 |
| CDLK42-50/5 | 101 | 42 | 18.5 | 2900 |
| CDLK42-60/6-2 | 113 | 42 | 22 | 2900 |
| CDLK42-60/6 | 122 | 42 | 22 | 2900 |
| CDLK42-70/7-2 | 134 | 42 | 30 | 2900 |
| CDLK42-70/7 | 142 | 42 | 30 | 2900 |
| CDLK42-80/8-2 | 154 | 42 | 30 | 2900 |
| CDLK42-80/8 | 162 | 42 | 30 | 2900 |
| CDLK42-90/9-2 | 174 | 42 | 30 | 2900 |
| CDLK42-90/9 | 183 | 42 | 37 | 2900 |
| CDLK42-100/10-2 | 197 | 42 | 37 | 2900 |
| CDLK42-100/10 | 203 | 42 | 37 | 2900 |
| CDLK42-110/11-2 | 217 | 42 | 45 | 2900 |
| CDLK42-110/11 | 225 | 42 | 45 | 2900 |
| CDLK42-120/12-2 | 238 | 42 | 45 | 2900 |
| CDLK42-120/12 | 247 | 42 | 45 | 2900 |
| CDLK42-130/13-2 | 259 | 42 | 45 | 2900 |
